High Performance Infrared Camera with on-board Visual Camera, Thermal Fusion, Touch Screen, Wi-Fi Connectivity, & Interchangeable Lens, Plus MSX Image Enhancement & FOV Match.
FLIR Part No: 62101-0101

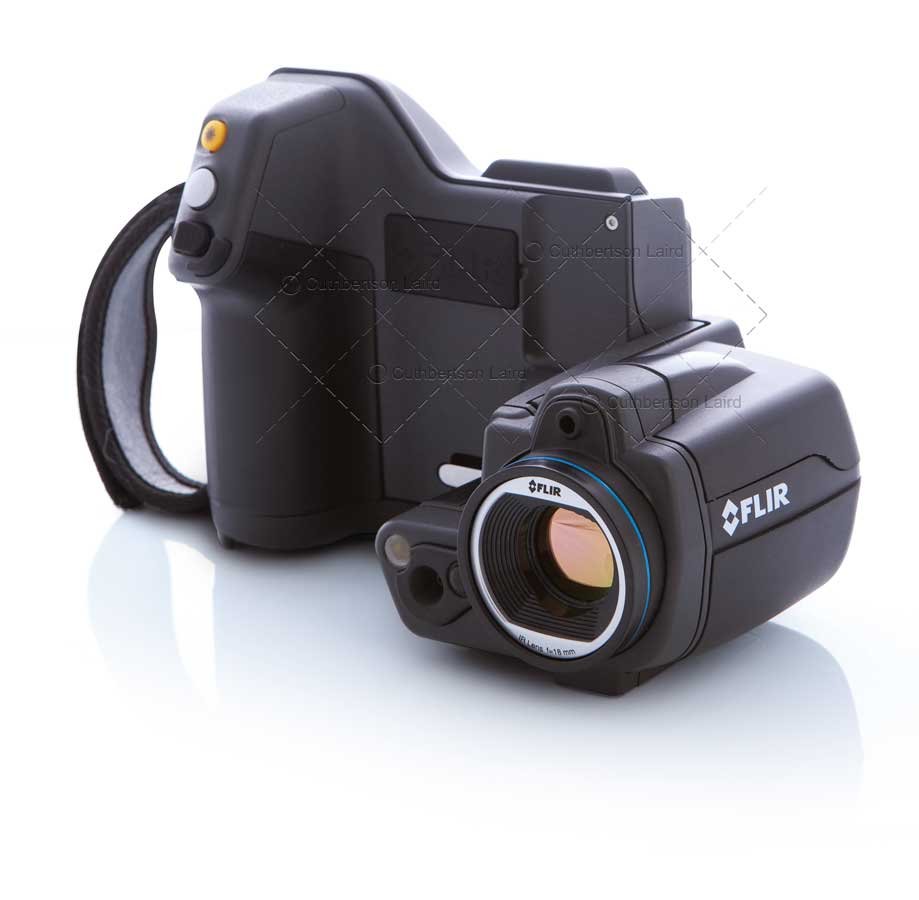

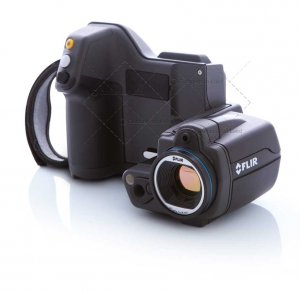

The FLIR T420 Thermal Imaging Infrared Camera represents thermal imaging’s most ergonomic and flexible hand-held cameras. The FLIR T420 features a rotating optical block that lets the user point the lens up or down along a 120° axis while keeping the large 3.5” (89mm) colour touch screen relaxed at eye level. Using the 320 x 240 pixels high resolution sensor, the FLIR T420 infrared thermal camera arms users with superior infrared imaging resolution that works harder to reveal trouble spots.
The FLIR T420 is a substantial upgrade from the previous T400 series, utilising a new parallax based auto-focus which operates at twice the speed of traditional auto-focus in thermal cameras. Other versatile imaging capabilities include scalable picture-in-picture and thermal fusion for easier image identification and added context.
FLIR T420 Thermal Imager Features
- High Thermal Sensitivity (N.E.T.D): <0.045°C @ 30°C.
- Wide temperature range: -4°F to 1202°F (-20°C to 650°C) with ±2% or 2°C accuracy.
- Focal Plane Array detector with 320 x 240 pixels infrared resolution (76,800 pixels).
- Measurement modes: Spot (up to 5), Area (up to 5), Isotherm, Hot / Cold, Delta T.
- Interchangeable lens with 1X-4X continuous zoom.
- Manual / Automatic focus camera with laser pointer.
- Display: 3.5" multifunction Touch Screen LCD.
- Built-in 3.1 Megapixel visible light digital camera with video lamp.
- Scalable Thermal Fusion and Picture-In-Picture (PIP).
- Voice / Text Annotation & Image Sketching.
- IR Windows Correction.
- Instant Report.
- Periodic Image Storage.
- MPEG-4 Digital Video recording, Radiometric / Non-Radiometric IR-Video Streaming.
- METERLiNK Wireless communication & connectivity for sending images and data to mobiles.
- SD card slot for image storage (more than 1,000 Radiometric JPEG images).
- Dimensions: 106 × 201 × 125 mm.
- Weight: 0.88kg incl. battery.
- FLIR T420 Warranty: 2 year.
Included Accessories:
FLIR T420: Hard transport case, Thermal imaging camera with lens, Battery, Battery charger, Bluetooth USB micro adaptor, Calibration certificate, FLIR Tools PC software CD-ROM, Headset, Memory card with adaptor, Power supply incl. multi-plugs, Printed Getting Started Guide, Sunshield, USB cable, User documentation CD-ROM, Video cable, Warranty extension card or Registration card.
