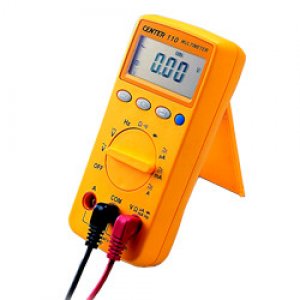

CENTER 110 is an autoranging DMM. With its small size, it can easily fit in most tool boxes, and the safety design is reinforced to meet the various everyday applications.
Features:
-
Autoranging
-
High speed bargraph
-
Max/Min function
-
REL function
-
AC/DC 10A test
 |
 |
Specifications:
AC Voltage
| Range | Resolution |
Accuracy
|
| 400mV~600V | 0.1mV~1V | 1%+4 |
DC Voltage
| Range | Resolution | Accuracy |
| 400mV~600V | 0.1mV~1V | 0.5%+2 |
AC Current
| Range | Resolution |
Accuracy
|
| 400μA~10V | 0.1μA~0.01A | 1.3%+5 |
DC Current
| Range | Resolution | Accuracy |
| 400μA~10V | 0.1μA~0.01A | 1%+2 |
Continuity
|
Range
|
Active Region
|
 |
< 40Ω
|
Resistance (Ω)
|
Range
|
Resolution
|
Accuracy | |
|
400Ω~40MΩ
|
0.1Ω~ 1Ω
|
0.8%+2
|
|
Frequency (Hz)
|
Range
|
Resolution
|
Accuracy | |
|
4KHz~40MHz
|
1KHz~10KHz
|
0.1%+1
|
|
Battery: 1.5V AAA x 2
Dimensions: 150 x 72 x 35mm
Weight: 220g
*The specifications are subjects to change without prior notice.
Standard Accessories:Battery, test lead, fuse, instruction manual |
